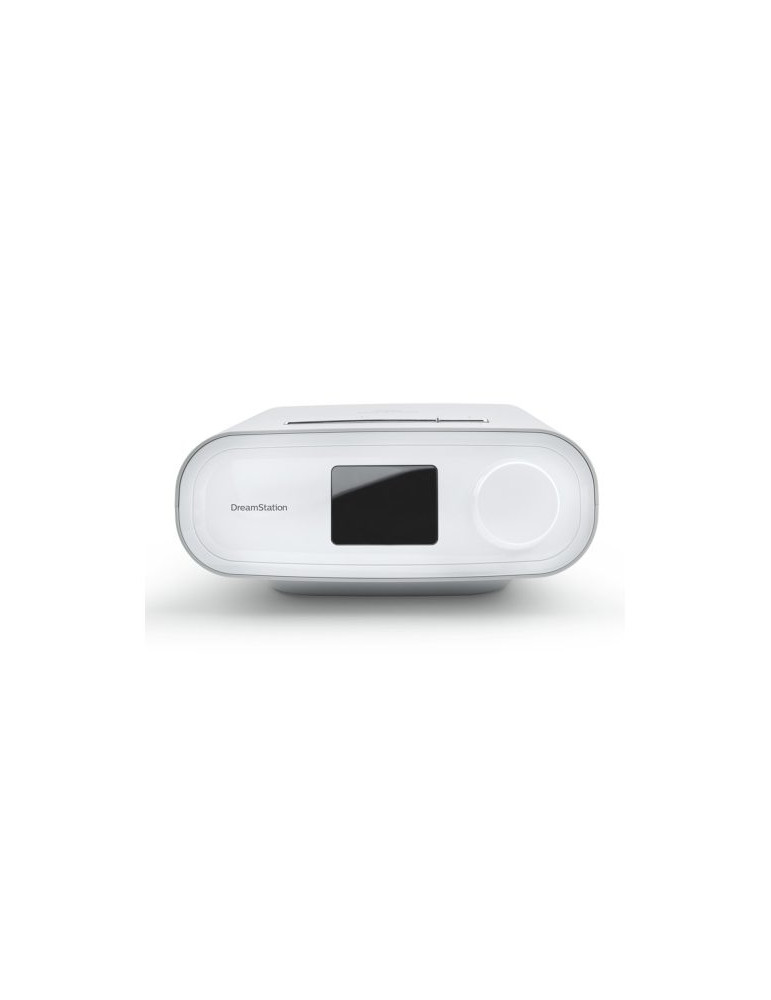

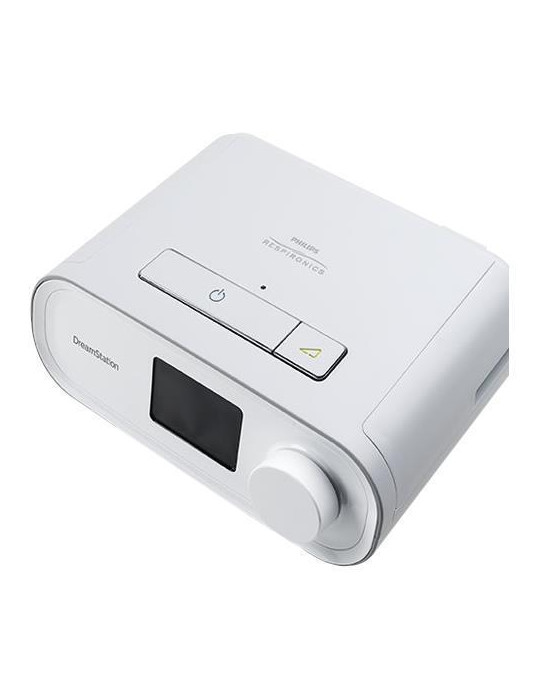

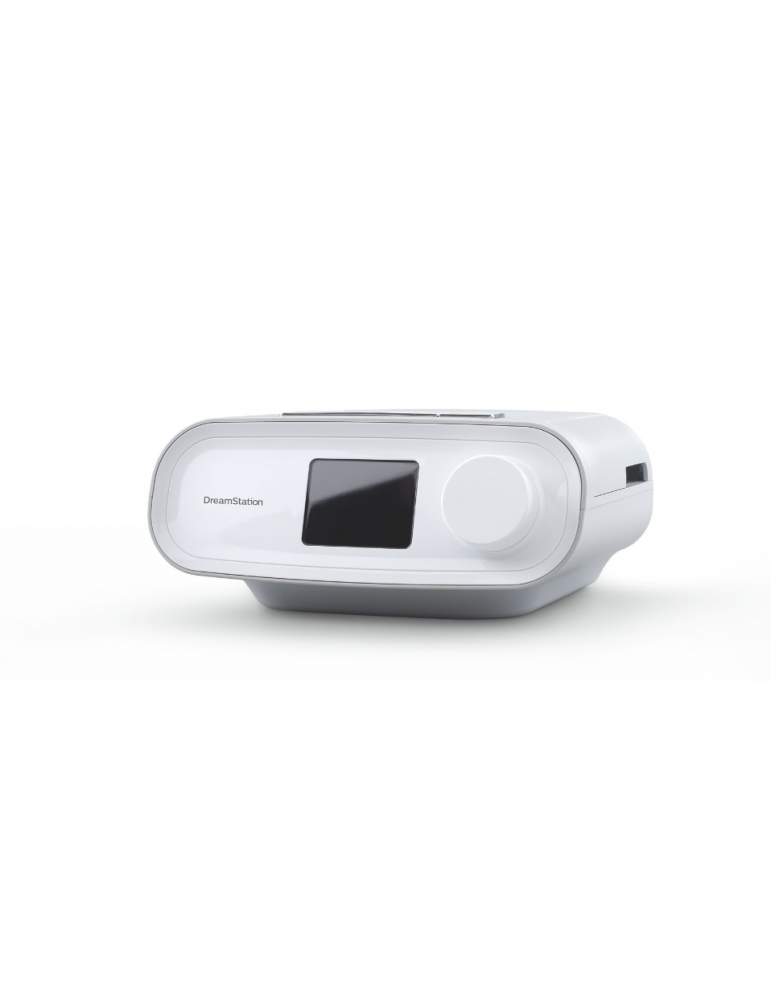

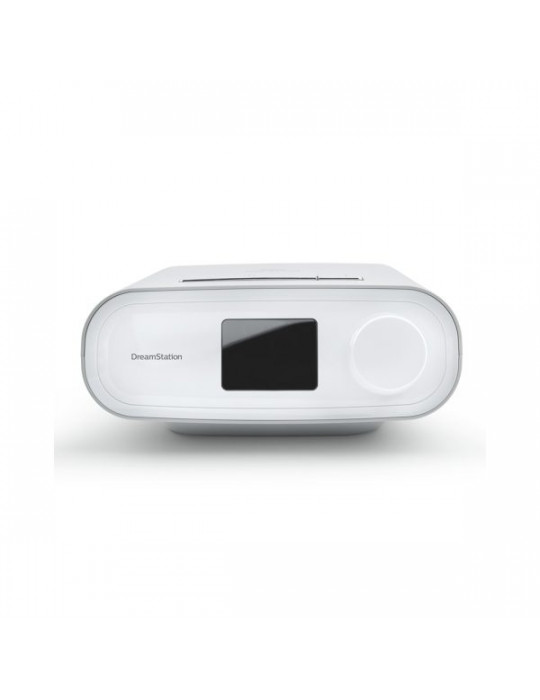

DreamStation positive airway pressure (PAP) sleep therapy devices are designed to be as comfortable and easy to experience as sleep is intended to be. Connecting patients and care teams, DreamStation devices empower users to embrace their care with confidence, and enable care teams to practice efficient and effective patient management.
Data sheet
Auto BiPAP Features :
Specifications DreamStation Auto BiPAP
For more details click below link :- https://www.philips.co.in/healthcare/product/HCNOCTN447/dreamstation-cpap-bipap-cpap-bi-level-therapy-systems
Pressure range | : 4 to 25 cm H2O |
Flex pressure relief | : 0 to 3 |
Ramp time | : 0 to 45 min (5-minute increments) |
Starting ramp pressure | : 4 cm H2O to CPAP Pressure (CPAP); 4cm H2O to Min EPAP (Auto BiPAP) |
Heated humidification | : Fixed, Adaptive, Heated Tube modes; Heated Tube (optional) |
Data storage capacity (minimum) | : SD card: > 1 year On-board: |
Altitude compensation | : Automatic |
Filters | : Reusable pollen; disposable ultra-fine |
Device controls | : LCD, control dial/push button |
Dimensions | : 15.7x19.3x8.4cm (w/o humidifier) 29.7x19.3x8.4cm (w/ humidifier) |
Weight | : 1.33kg/2.94lbs (w/o humidifier) 1.98kg/4.37lbs (w/humidifier) Incl. |
Electrical requirements | : power supply 100 – 240 VAC, 50/60 Hz, 2.0 |
Warranty | : 3 year's Manufacture's Warranty |
Sales Pack | : DreamStation Machine, Hospipe, Adapter, Carry Case, Filter & User Mannual |
Note: The information provided is best to our knowledge and subject to change without notice.
Picture for illustration purposes only, actual product and accessories may vary.
Specifications are subject to change without notice.
Please take advice of the authorized medical practitioner before use.
A BiPAP (Bilevel Positive Airway Pressure) machine helps you breathe by delivering two pressure levels—higher when inhaling (IPAP) and lower when exhaling (EPAP)—making breathing easier and more natural during sleep.
IPAP: Higher pressure for inhaling; helps lungs fill with air.
EPAP: Lower pressure for exhaling; keeps airway open with easier breaths.
AVAPS (Average Volume Assured Pressure Support) is a smart BiPAP feature that auto-adjusts pressure to maintain consistent airflow, ideal for users with changing breathing needs.
CPAP: One constant pressure.
BiPAP: Two pressures (IPAP & EPAP).
BiPAP suits those with central apnea, COPD, or heart/lung issues; CPAP is best for simple obstructive apnea.
BiPAP is often more comfortable due to easier exhalation and variable pressure support, especially for those who struggle with CPAP.
Most BiPAP units weigh 6–8 lbs. While less compact than travel CPAPs, some lighter models are available for travel.
Ensure the mask fits snug but not tight. Adjust straps, try different mask styles or liners, and check fit while lying down.
Usually caused by mouth breathing with a nasal mask. Use a chin strap or switch to a full-face mask. Use the humidifier for added moisture.
Loosen straps slightly, clean your face before sleep, and consider mask liners to reduce pressure marks.
Clean the mask and your face daily. Use barrier creams or hypoallergenic pads. Replace cushions regularly.
The ramp starts therapy at a lower pressure and gradually increases to your prescribed level, making it easier to fall asleep.
It’s not recommended. Skipping can cause a return of sleep apnea symptoms like snoring, fatigue, and disturbed sleep.
Use a padded bag, carry a universal power adapter, and check airline rules. Some machines also support external battery packs.
Use a medical-grade power adapter. For road trips, use a DC adapter. In remote areas, use BiPAP-compatible battery packs.
Mask: Daily with mild soap and water.
Tubing & humidifier: Weekly.
Water chamber: Refill and empty daily.
Disposable filters: Every 2–4 weeks.
Foam filters: Clean weekly, replace every few months.
Cushions/headgear: As per machine manual.
AHI (Apnea-Hypopnea Index) tracks breathing interruptions per hour. Aim for a score under 5 for effective therapy.
Under 5: Excellent
5–15: Mild
15–30: Moderate
Over 30: Severe
It shows how much air escapes from your mask. Under 24 L/min is normal. Higher leaks may need mask adjustment or part replacement.
Yes, minor leaks from vent holes are normal. But frequent or large leaks may affect therapy—recheck your mask fit.
Ensure usage for at least 4 hours nightly. Check for mask leaks or pressure issues. Humidification and setting adjustments may help—consult your doctor.
No, mouth breathing reduces therapy effectiveness. Use a chin strap or switch to a full-face mask.
Use the ramp feature for gradual pressure. Relax while adjusting. If discomfort continues, consult your provider.
Yes, side-sleeping works well. Ensure the mask fits securely and the tubing doesn’t pull.
Some noise is normal. Check for air leaks or tubing kinks. Place the machine on a soft surface to reduce vibration.
Nasal: For nose breathers.
Full-face: For mouth breathers or congestion.
Nasal pillows: Minimal and side-sleeper friendly.
