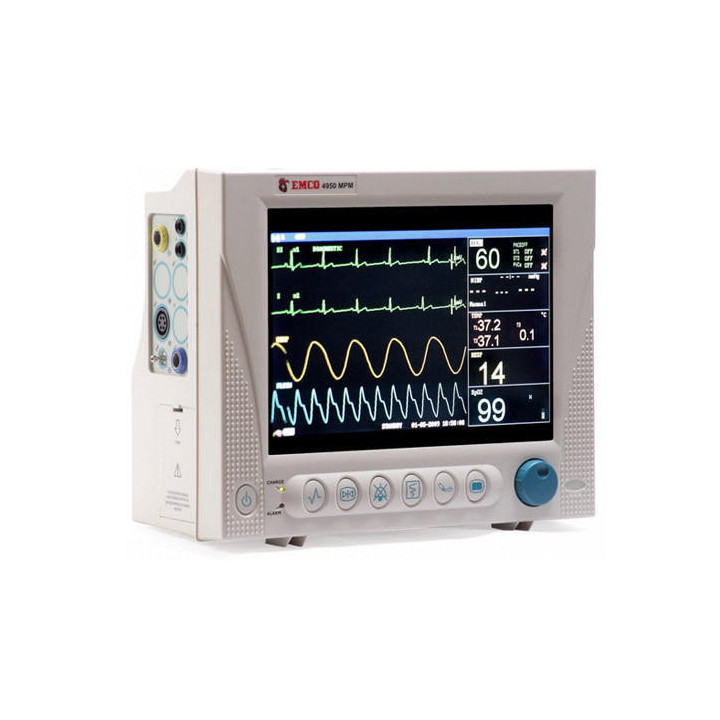

Patient Monitor EMCO
Product Highlights :
- Suitable for Adult, Pediatric & Neonatal
- Upgrade able to ETCO2
- 10.1 Color TFT Display
A patient monitor is an electronic medical device that consists of one of more monitoring sensors, a processing component(s), and a screen display (also called a "monitor") that provide and record for medical professionals a patient's medical vital signs (body temperature, blood pressure, pulse rate, and respiratory rate) or measurements of the activity of various body organs such as ECG monitors.
EMCO Meditek Patient Monitors are manufactured indigenously with foreign technology obtained from leading Medical Equipment Manufacturing companies around the world especially the USA and Europe.
- 10.1 Color TFT Display with maximum 11 waveformsStandard Configuration Ã¢Â€Â“ 5 Parameters Ã¢Â€Â“ ECG, SpO2, NIBP, Respiration, Temperature
- Upgradeable to etCO2, Dual IBP, Thermal Recorder
- Display of 7-lead ECG Waveforms in one screen
- Arrhythmia and ST-Segment Analysis
- 120 seconds full-disclosure waveforms review
- Selectable Layout Ã¢Â€Â“ Standard Display, Large Font, Trend Screen & OxyCRG View
- Offline Trends available Ã¢Â€Â“ 96 hours, 500 sets NIBP, 60 Alarm events
- Trends Ã¢Â€Â“ Graphical/Tabular, Arrhythmia Events & Technical Alarms Review
- Drug Dose Calculation.
- Suitable for Adult, Pediatric, and Neonatal.
- Central Monitoring/Network capability through LAN Ethernet
- USB port for saving Offline Memory.
Specification Patient Monitor EMCO
|Display Type||: Color TFT LCD 10.1|
|Automation Grade||: Automatic|
|Weight||: 4 Kg (with battery)|
|Sweep Speed||: 6.25,12.5,25,50 mm/s|
|Accuracy||: +/-2% (70-100% Adult/Pediatric)|
|Battery Type||: Rechageable Li-ion 14.8 VDC,2100 mAh|
|Resolution||: 800x480 pixels|
|Input||: 100-240 V AC,50/60 Hz|
|Alarm Range||: 0-100%|
|Paper Width||: 50 mm|
|Device Dimension||: 318x264x152 (WxHxD) mm|
|Traces Displayed||: Up to 11|
|Working Ambient Temperature||: Working Ambient Temperature|
|Storage Ambient Temperature||: -20 to +55 deg C|
|Ingress Protection||: IPX1|
|Rechaging Time||: Less than 180 min (2100 mAh)|
|Print Speed||: 25 mm/s,50 mm/s|
|Record Width||: 48 mm|
|Indicators||: Power LED,Two alarm LED,Charge LED|
|Working Humidity||: 25%-80% non-condensing|
|Storage Humidity||: 25%-93% non-condensing|
The description and specifications on the website are correct at the time of publishing.
In Pursuit of continual improvement, we reserve the right to change the design and specifications of any of our products without prior notice.
Picture for illustration purposes only
Specifications are taken from the above company website and they may change as per the changes on the company website.
Please take the advice of the authorized medical practitioner before use.
